LMK 鏡頭
LMK 顯微鏡和微距鏡頭 Microscope& Macroscope Lenses
LMK 6- 特點
- 我們為LMK 5提供各種顯微鏡 Microscopes（從50倍到6倍放大）和微距鏡 Macroscopes（具有不同的複製比例）。
- 有關測量距離和測量區域的具體資訊，請參閱下表，LMK 6 型號之間的測量距離和測量範圍各不相同。
MICROSCOPE
Microscope lenses for the LMK 6-12
For small and very small object fields or applications that require a large magnification, various microscope objectives are available for the LMK 6. By using a modular lens tool kit, TechnoTeam is able to manufacture and calibrate a large number of different microscopes with different magnifications.
| TT micro 5× | Focus type: fixed focus Measuring distance: ≈ 60 mm Measuring field (H × V): ≈ 2.8 × 2.1 mm |
| TT micro 10× | Focus type: fixed focus Measuring distance: ≈ 50 mm Measuring field (H × V): ≈ 1.5 × 1.1 mm |
| TT micro 20× | Focus type: fixed focus Measuring distance: ≈ 20 mm Measuring field (H × V): ≈ 0.74 × 0.55 mm |
| TT micro 50× | Focus type: fixed focus Measuring distance: ≈ 13 mm Measuring field (H × V): ≈ 0.29 × 0.21 mm |
MACROSCOPE
| Available lenses | |
|---|---|
| LMK 6-5 | 2.0/36/35; 1.5/40/35; 1.1/56/40; 0.8/93/50; 0.7/126/60; 0.5/166/60; 1.1/130/80 |
| LMK 6-12 | 2.0/36/35; 1.5/40/35; 1.1/56/40; 0.8/93/50; 0.7/126/60; 0.5/166/60; 1.1/130/80 |

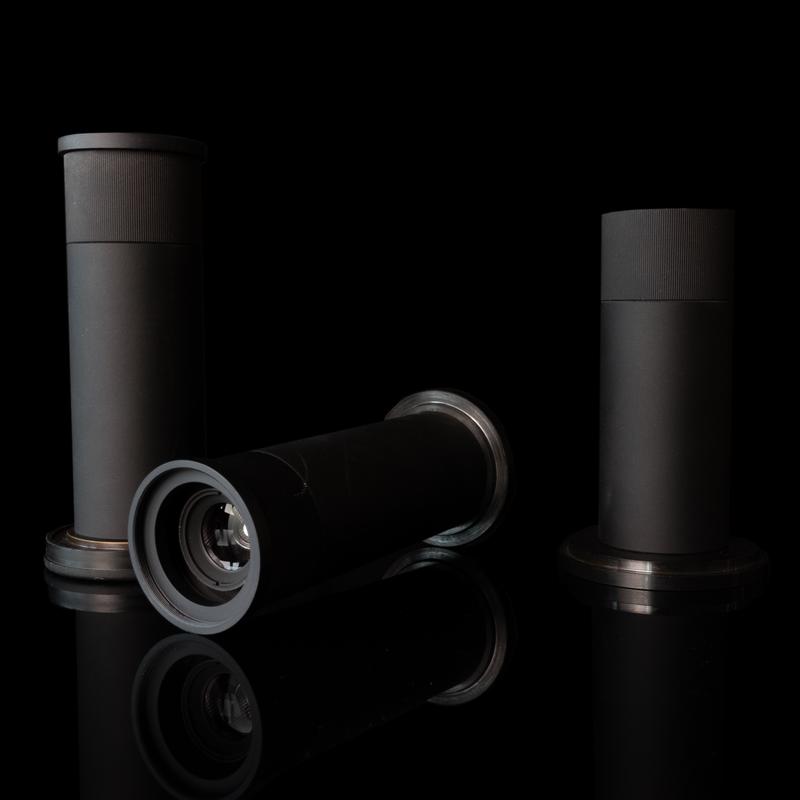

Macroscope lenses for the LMK 6-5
TechnoTeam offers a variety of macroscope lenses for the LMK for small and very small object fields or applications requiring a large magnification.
By using a modular lens kit, TechnoTeam is able to manufacture and calibrate a variety of different lenses with large imaging scales and for different measuring distances.
| TTmacro 2.0/36/35 | Focus type: fixed focus Focal length: 35 mm Measuring distance: 142 mm Lens length: ≈ 36 mm Measuring field angle (H × V): ≈ 4.5 mm × 3.3 mm Reproduction scale: 2.0 |
| TTmacro 1.5/40/35 | Focus type: fixed focus Focal length: 35 mm Measuring distance: 134 mm Lens length: ≈ 40 mm Measuring field angle (H × V): ≈ 5.7 mm × 4.5 mm Reproduction scale: 1.5 |
| TTmacro 1.1/56/40 | Focus type: fixed focus Focal length: 40 mm Measuring distance: 155 mm Lens length: ≈ 56 mm Measuring field angle (H × V): ≈ 7.8 mm × 5.9 mm Reproduction scale: 1.1 |
| TTmacro 0.8/93/50 | Focus type: fixed focus Focal length: 50 mm Measuring distance: 192 mm Lens length: ≈ 93 mm Measuring field angle (H × V): ≈ 11.5 mm × 8.6 mm Reproduction scale: 0.8 |
| TTmacro 0.7/126/60 | Focus type: fixed focus Focal length: 60 mm Measuring distance: 237 mm Lens length: ≈ 126 mm Measuring field angle (H × V): ≈ 13.4 mm × 10 mm Reproduction scale: 0.7 |
| TTmacro 0.5/166/60 | Focus type: fixed focus Focal length: 60 mm Measuring distance: 265 mm Lens length: ≈ 166 mm Measuring field angle (H × V): ≈ 19.2 mm × 14.4 mm Reproduction scale: 0.5 |
| TTmacro 1.1/130/80 | Focus type: fixed focus Focal length: 80 mm Measuring distance: 311 mm Lens length: ≈ 130 mm Measuring field angle (H × V): ≈ 8.4 mm × 6.3 mm Reproduction scale: 1.1 |
Macroscope lenses for the LMK 6-12
TechnoTeam offers a variety of macroscopic and microscope lenses for the LMK for small and very small object fields or applications requiring a large magnification.
By using a modular lens kit, TechnoTeam is able to manufacture and calibrate a variety of different lenses with large imaging scales and for different measuring distances.
| TTmacro 2.0/36/35 | Focus type: fixed focus Focal length: 35 mm Measuring distance: 142 mm Lens length: ≈ 36 mm Measuring field angle (H × V): ≈ 7.3 mm × 5.1 mm Reproduction scale: 2.0 |
| TTmacro 1.5/40/35 | Focus type: fixed focus Focal length: 35 mm Measuring distance: 134 mm Lens length: ≈ 40 mm Measuring field angle (H × V): ≈ 9.0 mm × 6.5 mm Reproduction scale: 1.5 |
| TTmacro 1.1/56/40 | Focus type: fixed focus Focal length: 40 mm Measuring distance: 155 mm Lens length: ≈ 56 mm Measuring field angle (H × V): ≈ 12.8 mm × 9.3 mm Reproduction scale: 1.1 |
| TTmacro 0.8/93/50 | Focus type: fixed focus Focal length: 50 mm Measuring distance: 192 mm Lens length: ≈ 93 mm Measuring field angle (H × V): ≈ 17.6 mm × 13.2 mm Reproduction scale: 0.8 |
| TTmacro 0.7/126/60 | Focus type: fixed focus Focal length: 60 mm Measuring distance: 237 mm Lens length: ≈ 126 mm Measuring field angle (H × V): ≈ 20.8 mm × 15 mm Reproduction scale: 0.7 |
| TTmacro 0.5/166/60 | Focus type: fixed focus Focal length: 60 mm Measuring distance: 265 mm Lens length: ≈ 166 mm Measuring field angle (H × V): ≈ 30 mm × 22 mm Reproduction scale: 0.5 |
| TTmacro 1.1/130/80 | Focus type: fixed focus Focal length: 80 mm Measuring distance: 311 mm Lens length: ≈ 130 mm Measuring field angle (H × V): ≈ 13 mm × 9.5 mm Reproduction scale: 1.1 |
